20~50kWh Low Voltage Stacked Series Energy Storage Systems Battery
Battery energy：20-50KWH
Nominal Voltage: 51.2V
Battery Type: LiFePo4
Standard Charge/Discharge Current:100A@0.5C(Max 200A)
Life Cycling: 6000 cycles @ 0.5C; 80% DOD
Flexible expansion: flexible expandable from 20kWh to 307.2kWh
Communication: RS485, CAN
Warranty: 5 years
Nominal Voltage: 51.2V
Battery Type: LiFePo4
Standard Charge/Discharge Current:100A@0.5C(Max 200A)
Life Cycling: 6000 cycles @ 0.5C; 80% DOD
Flexible expansion: flexible expandable from 20kWh to 307.2kWh
Communication: RS485, CAN
Warranty: 5 years
More Details
FEATURES
* Class A LFP battery,Cobaltfree, environmentally friendly.
* Longer service life, 6000 Cycles @ 0.5C 80%DOD
* CE, MSDS, UN38.3 and other product certification.
* Built-in intelligent BMS, real-time monitoring of voltage, current, temperature, prevent short circuit, overcharge and overdischarge, and equipped with three-level fault warning.
* Scalable:up to 6 stacks(of 51.2kWh) can be connected in parallel to give a maximum of 307.2kWh usable capacity.
* Match 95% of brand inverters.
* Stacked design, saving space, convenient parallel installation.
* Applicable for residential and commercial uses.
* Longer service life, 6000 Cycles @ 0.5C 80%DOD
* CE, MSDS, UN38.3 and other product certification.
* Built-in intelligent BMS, real-time monitoring of voltage, current, temperature, prevent short circuit, overcharge and overdischarge, and equipped with three-level fault warning.
* Scalable:up to 6 stacks(of 51.2kWh) can be connected in parallel to give a maximum of 307.2kWh usable capacity.
* Match 95% of brand inverters.
* Stacked design, saving space, convenient parallel installation.
* Applicable for residential and commercial uses.

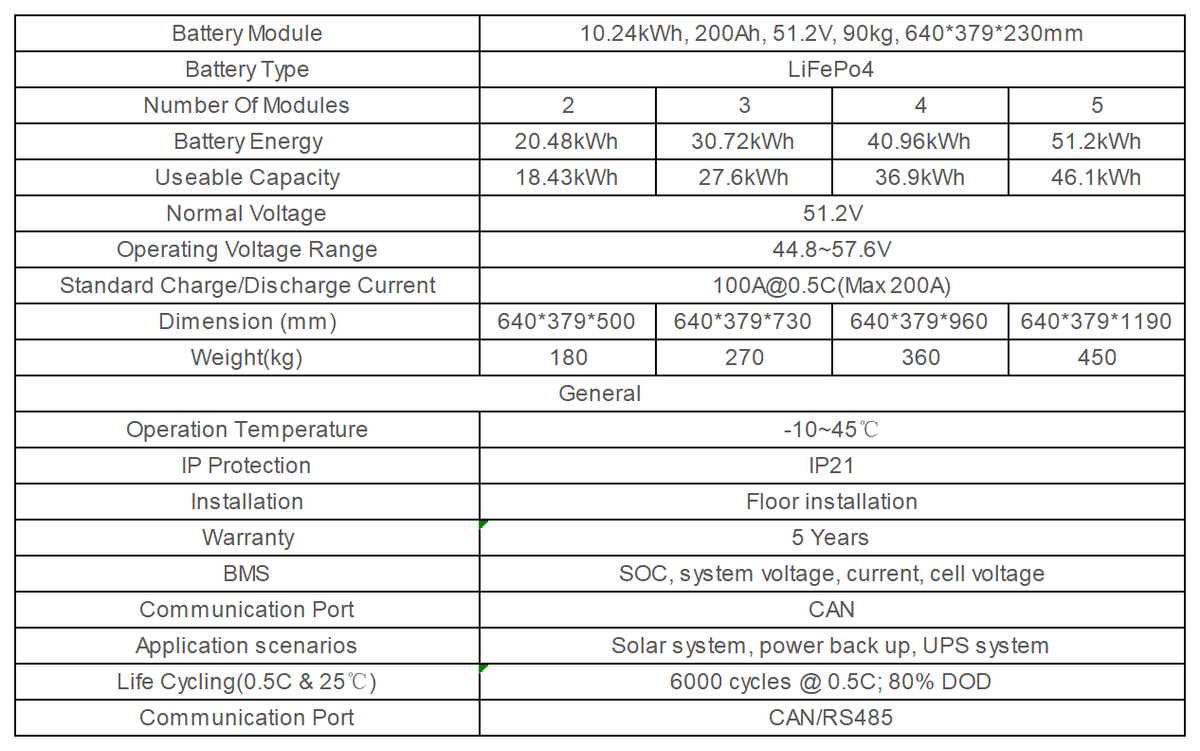

SPEC
